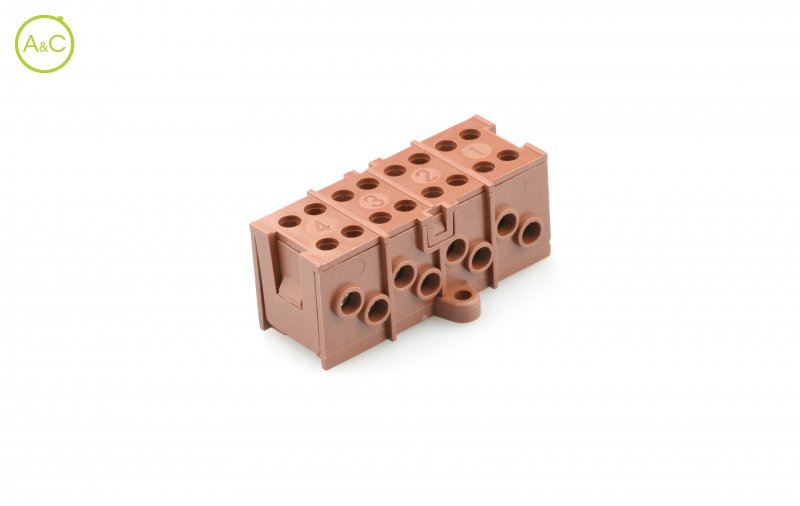

Compact linear terminal block

Download Datenblatt

Number Of Poles

  • 4+4
Article Number THB.032.A4B THP.032.A4B
Number Of Contacts 4+4 4+4
Protection Degree IP00 IP00
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 450 450
Rated Current 32 A 17.5 A
Contact Terminal Multiple contact max 4,0 mm² Piercing clip terminals max 1,5 mm²
Terminals Screw Piercing
Cable Section max 4,0 mm² 0,5 -1,5 mm²
T Marking T125 °C T125 °C
Protection Degree Details can install inside TEEBOX can install inside TEEBOX
Tracking Index PTI 175 PTI 175
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C brown PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc brass plated
Standards EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
