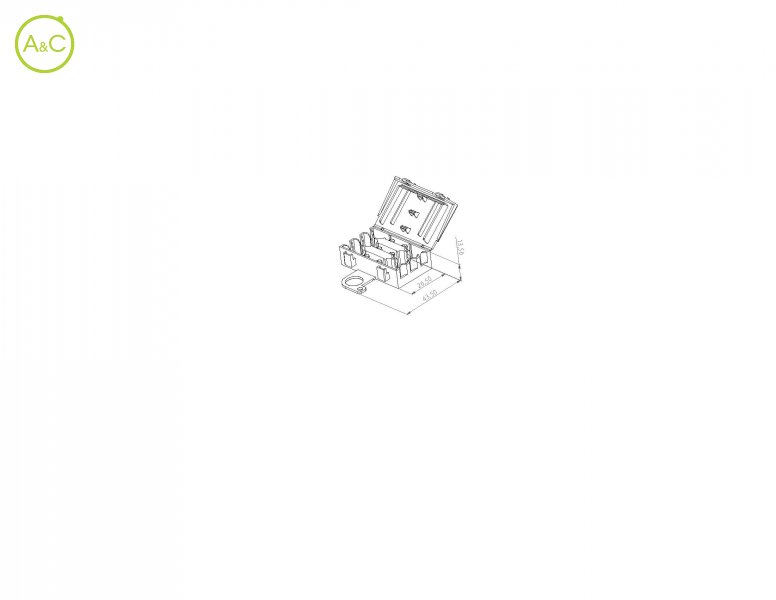

IP20 protection, Junction boxes empty and with terminal blocks

  • Slot version fixing
Download Datenblatt

Number Of Poles

  • 2
  • 3
Article Number THB.100.A2B THP.100.A2B THB.100.A4B
Number Of Contacts 2 2 2
Protection Degree IP20 IP20 IP20
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 450 450 450
Rated Current 24 A 24 A 24 A
Contact Terminal Std contact Piercing clip terminals max 1,5 mm² WP contact for cable section < 1,0 mm²
Terminals Screw Piercing Screw
Cable Section max 2,5 mm² 0,5 - 1,5 mm² max 2,5 mm²
Min-max Cable Diameter single cables mm single cables mm single cables mm
Cable Entries/exits 2 ways 2 ways 2 ways
T Marking T85 °C T85 °C T85 °C
Tracking Index PTI 250 PTI 250 PTI 250
Terminal Block Housing PA66 UL94 V2 GWT 850°C natural PA66 UL94 V2 GWT 850°C natural PA66 UL94 V2 GWT 850°C natural
Contact Screw Terminals Brass nickel plated Brass nickel plated Brass nickel plated
Standard Screws M3 steel zinc plated M3 steel zinc brass plated M3 steel zinc plated
Standards EN60998-1:2004 EN60998-2-1:2004 EN60998-1:2004 EN60998-2-1:2004 EN60998-1:2004 EN60998-2-1:2004
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
