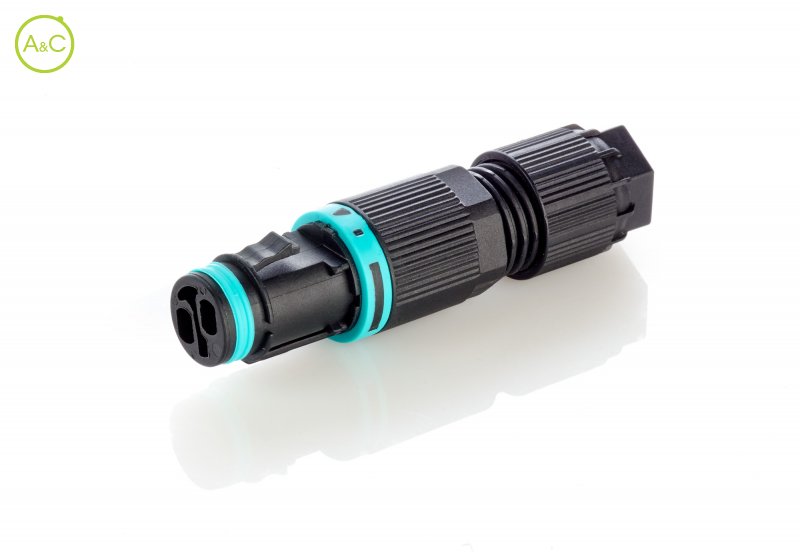

IP68 socket micro-connector

Download Datenblatt

Number Of Poles

  • 2
Article Number THB.381.B2A THB.381.B2A.L
Number Of Contacts 2 2
Protection Degree IP68 IP68
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 400 400
Pollution Degree 2 2
Rated Current 10 A 10 A
Terminals Screw Screw
Cable Section 0,25 - 1,0 mm² 0,25 - 1,0 mm²
Min-max Cable Diameter 5,8 - 6,9 mm 7,0 - 8,0 mm
Protection Degree Details 30m/1h 30m/1h
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Cable Glands PA66 GF UL94 V2 - GWT 850°C PA66 GF UL94 V2 - GWT 850°C
Co-moulded Seals TPE-S TPE-S
Contact Screw Terminals Silver plated brass Silver plated brass
Screw zinc-plated zinc-plated
Standards EN61984:2009 EN61984:2009
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
