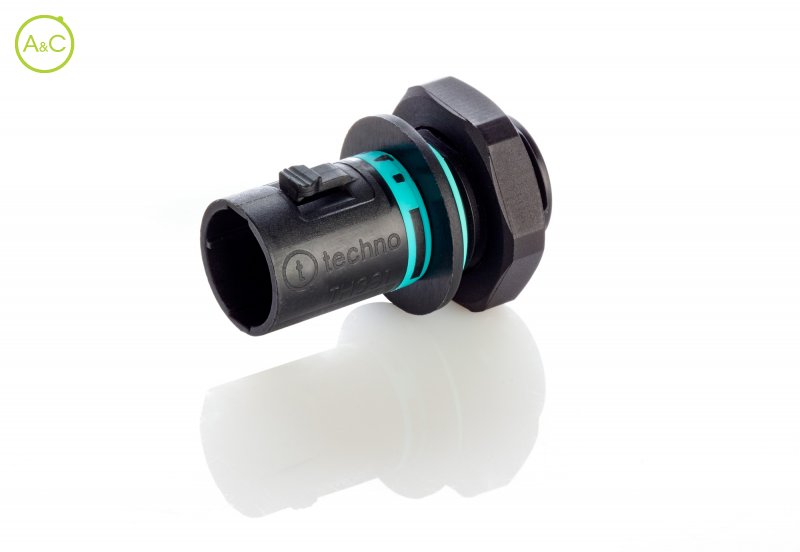

IP68 Panel M16 micro-connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Techno
Techno
Number Of Poles
- 2
| Article Number | THB.381.N2A |
| Number Of Contacts | 2 |
| Protection Degree | IP68 |
| Upper Temperature | +125 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 400 |
| Pollution Degree | 2 |
| Rated Current | 10 A |
| Terminals | Screw |
| Cable Section | 0,25 - 1,0 mm² |
| Protection Degree Details | 30m/1h |
| Impulse Withstand Category | II |
| Impulse Withstand Voltage | 4 kV |
| Tracking Index | PTI 175 |
| Cable Glands | PA66 GF UL94 V2 - GWT 850°C |
| Co-moulded Seals | TPE-S |
| Contact Screw Terminals | Silver plated brass |
| Screw | zinc-plated |
| Standards | EN61984:2009 |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
