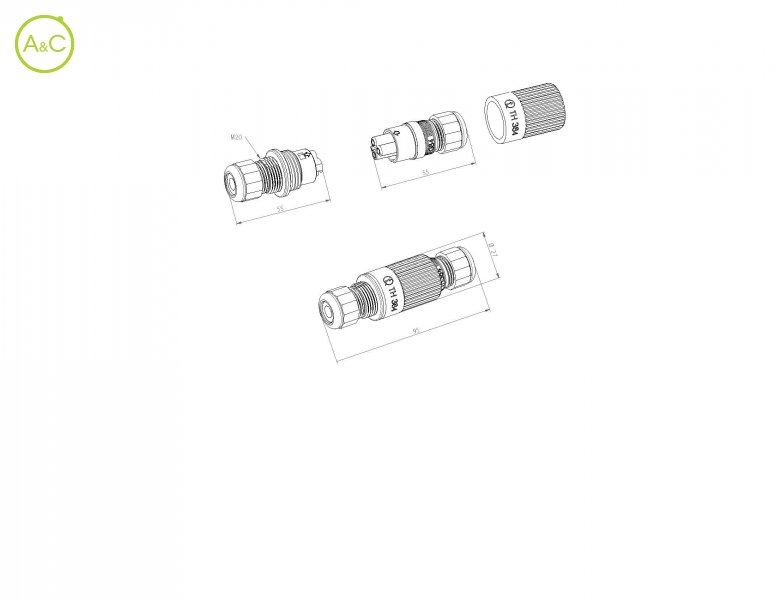

Panel-mount Pin crimp Plug

Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
Article Number THF.384.A2A THF.384.L2A
Number Of Contacts 2 2
Protection Degree IP66-68 IP54
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 400 400
Pollution Degree 2 2
Rated Current 10 A 10 A
Contact Terminal For universal cylindric pin ∅ 2 mm (not supplied). For universal cylindric pin ∅ 2 mm (not supplied).
Terminals Crimp Crimp
Min-max Cable Diameter 7,0 - 12,0 mm 7,0 - 12,0 mm
T Marking T85 °C T85 °C
Protection Degree Details 5 bar (50 m / 24 h) 5 bar (50 m / 24 h)
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE TPE
Seals SEBS SEBS
Contact Screw Terminals Brass nickel plated OR Brass silver plated (THX.384.XXX.AG) Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)
Standards EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h) EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)
Note Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
604000500
seal for wall mounting
