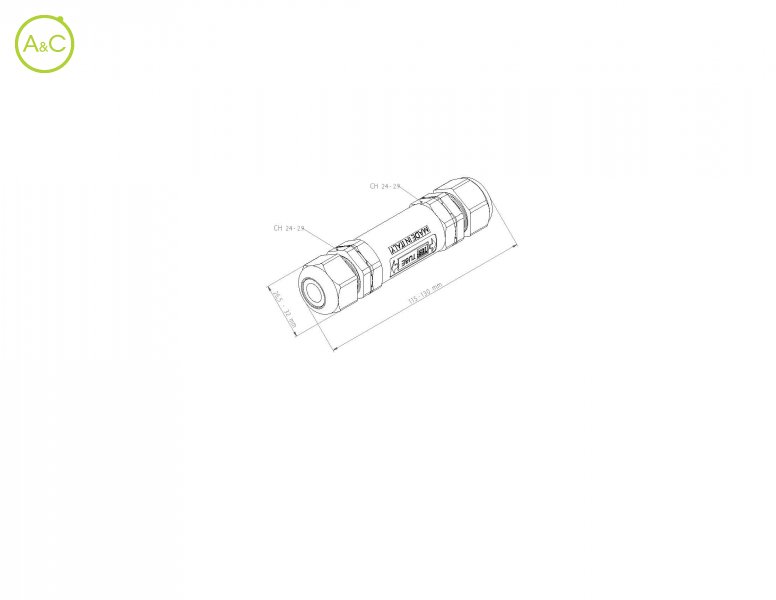

A&C Solutions - THP.400.F2A.1

Article Number	THP.400.F2A.1	THP.400.F2A.2	THP.400.F2A.3
Number Of Contacts	2	2	2
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Piercing	Piercing	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	7,0 - 10,5 mm	7,0 - 10,5 mm
Cable Diameter Min-max B	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	50 m / 1 h	50 m / 1 h	50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel brass plated	M3 steel brass plated	M3 steel brass plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THP.400.F3A.1	THP.400.F3A.2	THP.400.F3A.3
Number Of Contacts	3	3	3
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Piercing	Piercing	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	7,0 - 10,5 mm	7,0 - 10,5 mm
Cable Diameter Min-max B	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	50 m / 1 h	50 m / 1 h	50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel brass plated	M3 steel brass plated	M3 steel brass plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THP.400.F4A.1	THP.400.F4A.2	THP.400.F4A.3
Number Of Contacts	4	4	4
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Piercing	Piercing	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	7,0 - 10,5 mm	7,0 - 10,5 mm
Cable Diameter Min-max B	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	50 m / 1 h	50 m / 1 h	50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel brass plated	M3 steel brass plated	M3 steel brass plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THP.400.F5A.1	THP.400.F5A.2	THP.400.F5A.3
Number Of Contacts	5	5	5
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Piercing	Piercing	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	7,0 - 10,5 mm	7,0 - 10,5 mm
Cable Diameter Min-max B	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	50 m / 1 h	50 m / 1 h	50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel brass plated	M3 steel brass plated	M3 steel brass plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THP.400.F6A.1	THP.400.F6A.2	THP.400.F6A.3
Number Of Contacts	6	6	6
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Piercing	Piercing	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	7,0 - 10,5 mm	7,0 - 10,5 mm
Cable Diameter Min-max B	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	50 m / 1 h	50 m / 1 h	50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel brass plated	M3 steel brass plated	M3 steel brass plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Produkte

High protection In-line and junction with innovative cable glands

Number Of Poles
