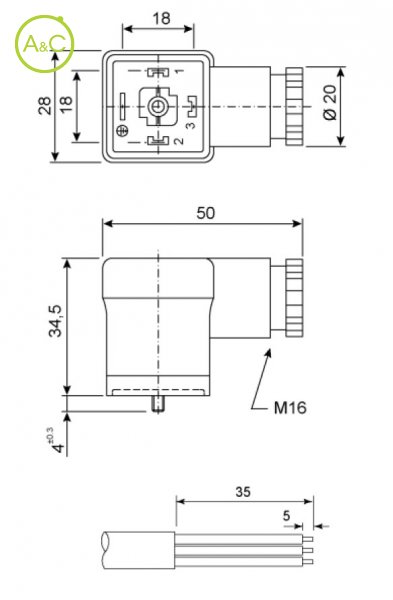

Style A square connector

  • Diode
Download Datenblatt

Housing Colour

  • Black
Article Number VC11 05A00 3 0 S000
Protection Degree IP67
Upper Temperature +70 °C
Lower Temperature -40 °C
Contact Type 3-point contact
Housing Material PA66 30%GF
Circuits Diode
Housing Oil Resistance Good
Contact Material Nickel plated CuZn
Max. Wire Section 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron
Voltage Vdc 1 to 250
Max. Currrent 10 A @40°C
Clamping Voltage -1 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
