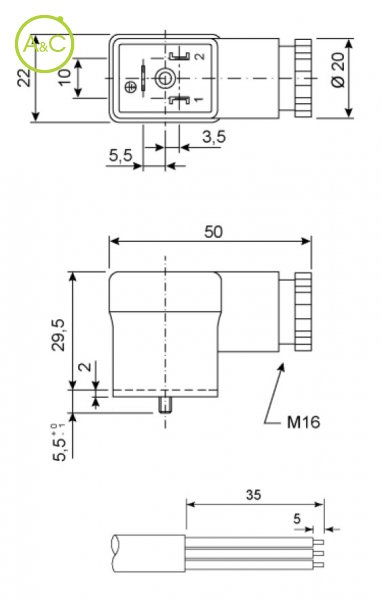

Style B rectangular connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield
Shield
Housing Colour
- Transparent
| Article Number | VF63 24A3R 3 0 S000 | VF63 24A8R 3 0 S000 |
| Protection Degree | IP65 | IP65 |
| Upper Temperature | +70 °C | +70 °C |
| Lower Temperature | -40 °C | -40 °C |
| Contact Type | Spring contact | Spring contact |
| Housing Material | PA66 30%GF | PA66 30%GF |
| Circuits | Red Led + diode | Red Led + diode |
| Housing Oil Resistance | Good | Good |
| Contact Material | Nickel plated CuZn | Nickel plated CuZn |
| Max. Wire Section | 1,5 mm² | 1,5 mm² |
| Other Characteristics | M3 central screw material: zinc plated iron | M3 central screw material: zinc plated iron |
| Voltage Vdc | 10 to 50 | 70 to 250 |
| Max. Currrent | 10 A @40°C | 10 A @40°C |
| Clamping Voltage | -1 V | -1 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
