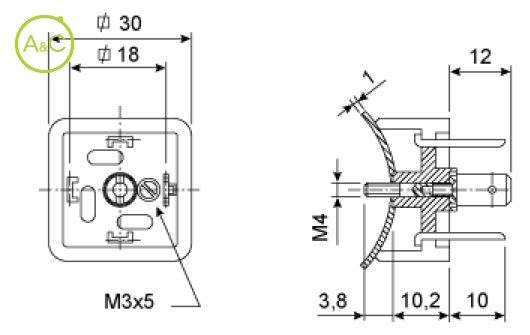

Style A square receptacle connector

  • With 1 screw
Download Datenblatt

Number Of Poles

  • 2+G
  • 3+G
Article Number VP30 02A0S VP45 02A0S VP60 02A0S
Number Of Contacts 2+G 2+G 2+G
Protection Degree IP65 IP65 IP65
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Housing Material PA66 30%GF PA66 30%GF PA66 30%GF
Housing Oil Resistance Occasional contact Occasional contact Occasional contact
Contact Material Nickel plated CuZn Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1 mm² 1 mm² 1 mm²
Voltage Vdc 1 to 250 1 to 250 1 to 250
Voltage Vac 1 to 250 1 to 250 1 to 250
Max. Currrent 10 A @40°C 10 A @40°C 10 A @40°C
Fitting Diameter 28 to 32 mm 43 to 47 mm 63 to 67 mm
Included Accessories 1 central screw 1 screw M3x5 1 gasket 1 central screw 1 screw M3x5 1 gasket 1 central screw 1 screw M3x5 1 gasket
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
