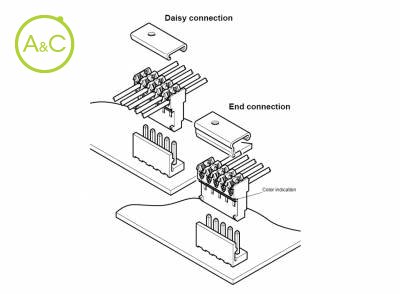

Cover Daisy connection

  • VR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 9
  • 10
  • 12
  • 15
Article Number VRC-02D
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

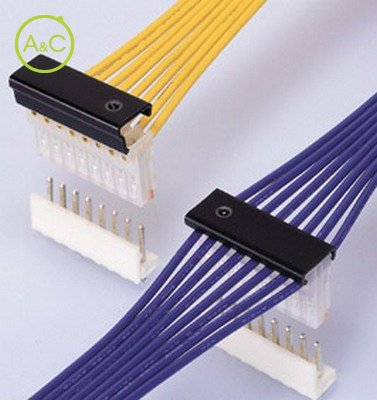

This 3.96mm (.156") pitch insulation displacement connector is used with printed circuit boards. Since the connector can accommodate 18 AWG wires and has a large pitch, it is ideal for connecting power supply circuits. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. Two types of connections This receptacle can be used for both daisy chain (through) connections and end connections. The end connections can be made from either direction. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Zubehör
PK-VR
Polarizing key
