Plug Housing for XMA Connector

  • XMA CONNECTOR

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number XMAP-02V-1-S XMAP-02V-2-R XMAP-02V-3-E
Color White Red Blue
Number Of Contacts 2 2 2
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style 2.5mm Pitch Disconnectable Crimp Style 2.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors Wire to Wire Connectors Wire to Wire Connectors
Pitch / Style 2.50 mm 2.50 mm 2.50 mm
Rated Current (ac/dc) 3 A 3 A 3 A
Rated Voltage (ac/dc) 250 V 250 V 250 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

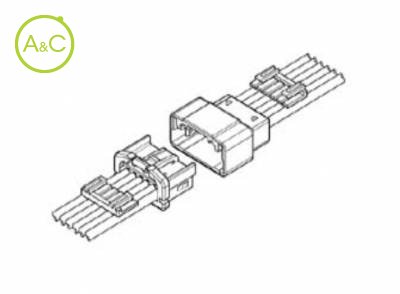

This connector is a 2.5mm pitch wire-to-wire connector, having incomplete mating prevention mechanism. 2 circuit and 3 circuit connectors have control key to prevent connector from mating with incorrect circuits, thus, several same circuit connectors can be used. Inertial lock structure with side lock mechanism 3 type combination of control key with one kind of circuit Secure locking structure Finger-friendly design RoHS Compliant
