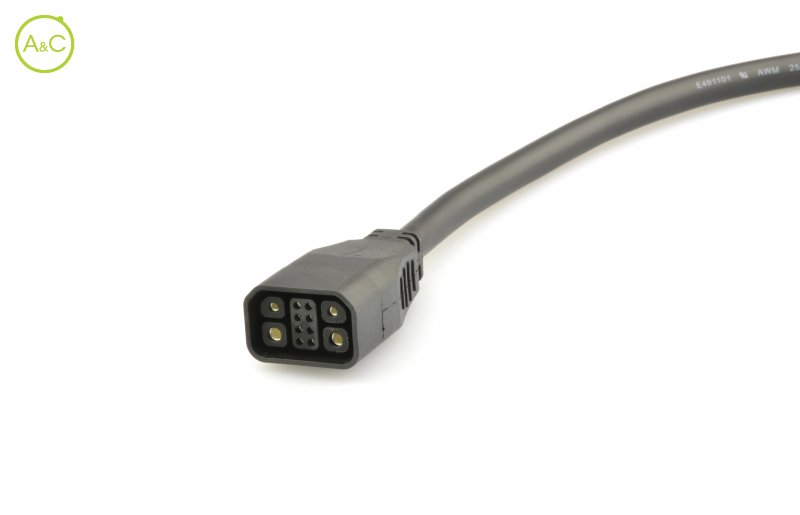

Female cable connector

  • Charging & discharging in 1

Number Of Poles

  • 12 (2+2+8)
Article Number Z1228BM P 00 GK 1000
Color Black

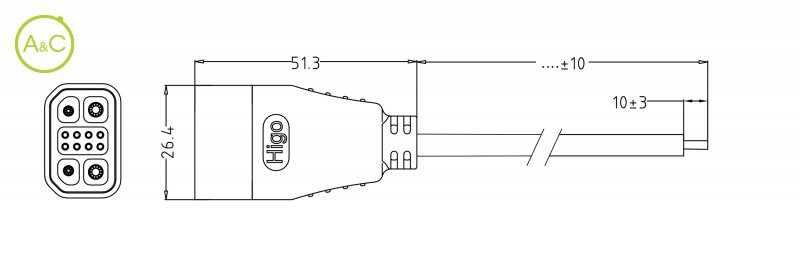

Connector Diameter 26.4 mm
Wire Section 2 x 2,5 + 2 x 1,0 + 8 x 0,2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Cable Diameter 8.5 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 25 / 10 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 90.8 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
