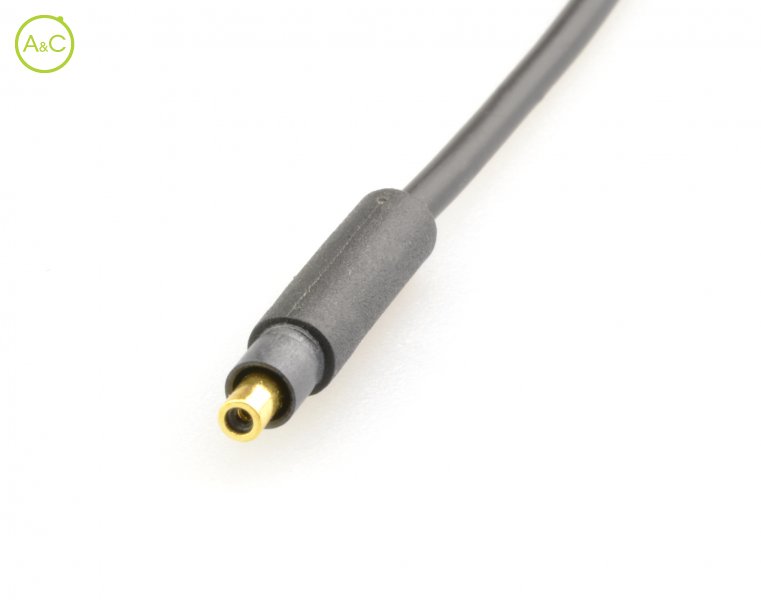

Micro A female plug connector

Number Of Poles

  • 2
Article Number Z205AM P 00 AW 1000
Color Black

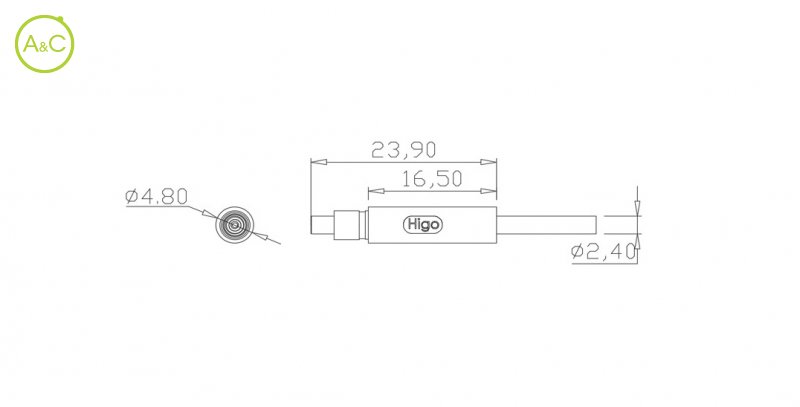

Connector Diameter 4.8 mm
Wire Section 2 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 2.4 mm
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 35.4 mm
Material Jacket TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
