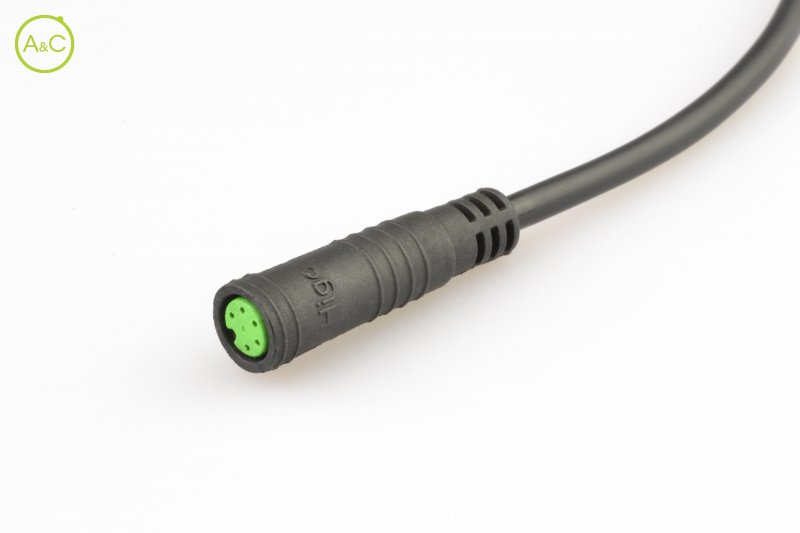

Mini B Female cable connector

Download Datenblatt Download Datei

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number Z209BM P 00 A0 1000 Z209BM P 00 AW 1000
Color Red Red
Connector Diameter 9 mm 9 mm
Wire Section 0.2 mm² 0.14 mm²
Cable Length 1000 mm 1000 mm
Protection Degree IP66 IP66
Mating Cycles 200 times 200 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact Copper Alloy Copper Alloy
Cable Diameter 3.7 mm 2.4 mm
Insulation Wire PVC Teflon
Remark Other cable length/type on request Other cable length/type on request
Rated Current 2 A 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel
Fitting Length 62 mm 62 mm
Material Jacket PVC TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
