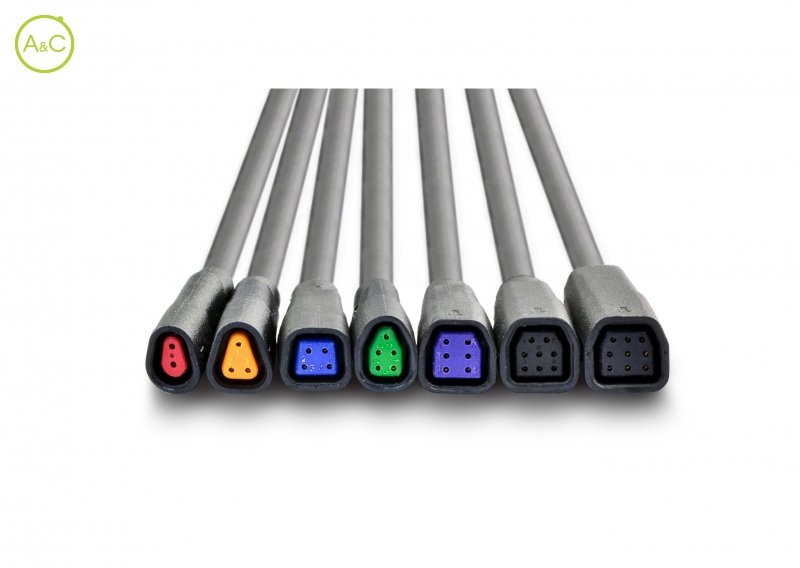

Mini F female cable connector

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 9
Article Number Z209FM P 00 A0 1000 Z209FM P 00 AW 1000
Color Red Red
Connector Diameter see drawing mm see drawing mm
Wire Section 0.2 mm² 0.2 mm²
Cable Length 1000 mm 1000 mm
Protection Degree IP66/IP67 IP66/IP67
Mating Cycles 200 times 200 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact / /
Cable Diameter 3.7 mm 3.7 mm
Insulation Wire PVC Teflon
Rated Current 2 A 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating / /
Fitting Length 54 mm 54 mm
Material Jacket PVC TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
