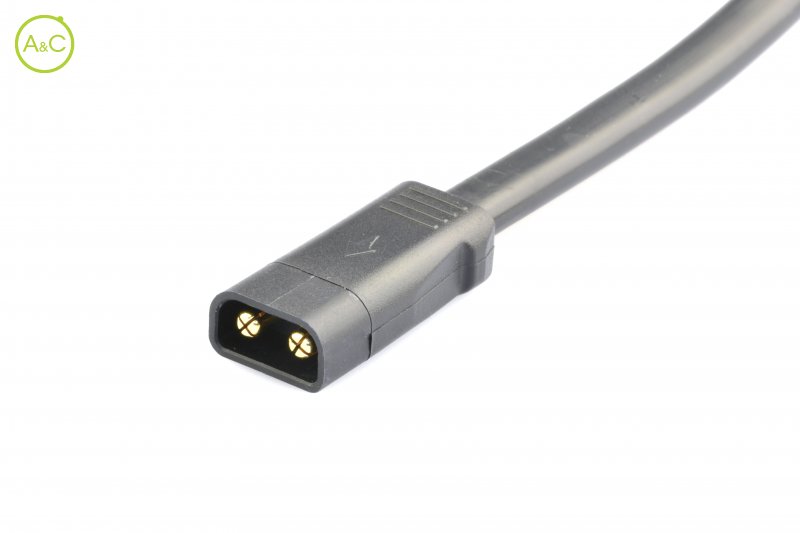

Male cable connector

Number Of Poles

  • 2
Article Number Z216AGP 00 FD 0000
Color Black

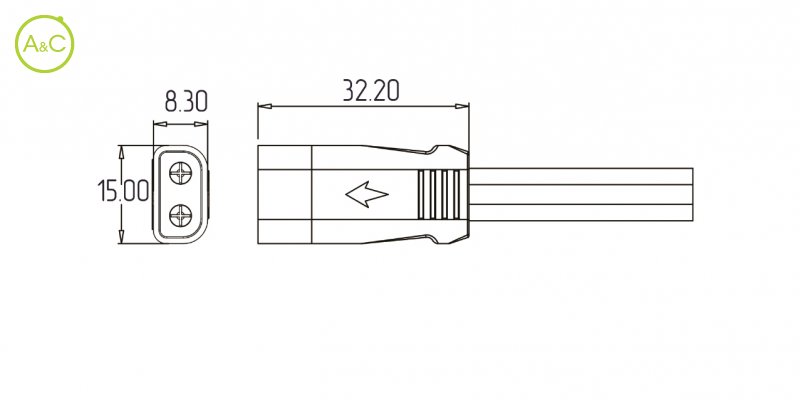

Connector Diameter 15,0 x 8,3 mm
Wire Section 2.5 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 8x5 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 25 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 51 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
