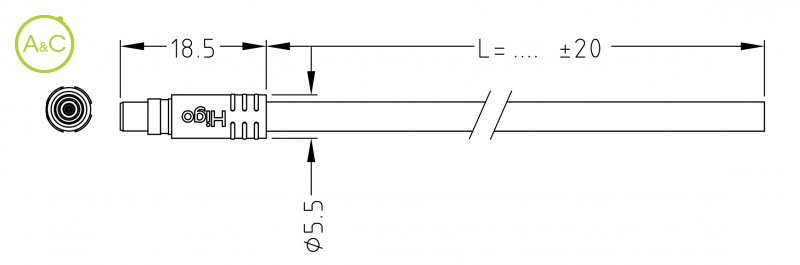

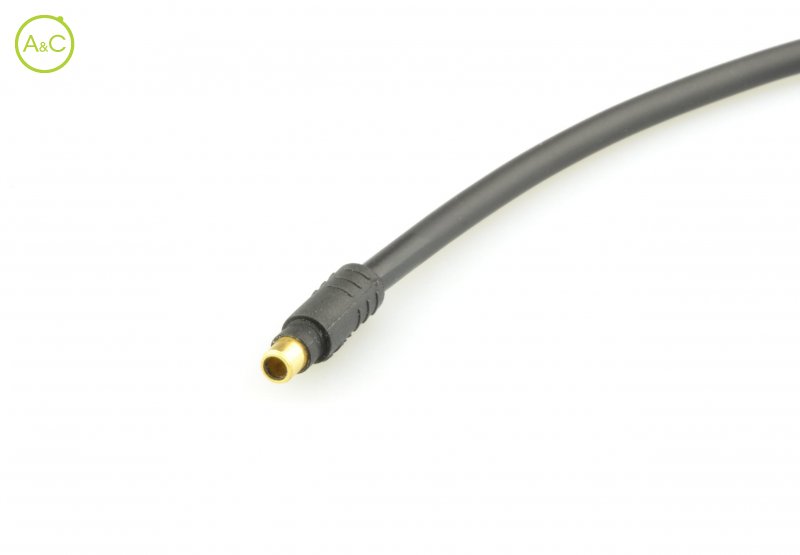

Micro A Male plug connector

Number Of Poles

  • 3
Article Number Z305AG P 00 FV 1000
Color Black
Connector Diameter 5.5 mm
Wire Section 3 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Cable Diameter 3.7 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 31.7 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
