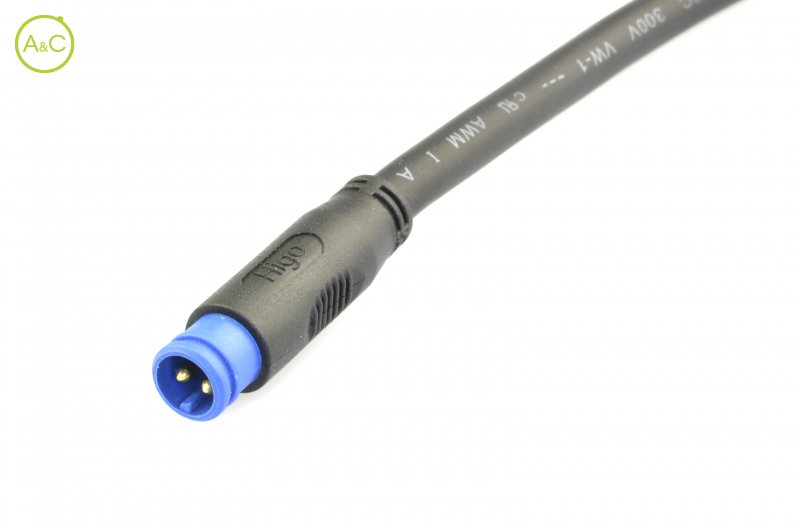

Male cable connector

Number Of Poles

  • 4 (2+2)
Article Number Z409EGP 00 FE 1000 Z409EGP 00 D5 1000
Color Blue Bleu

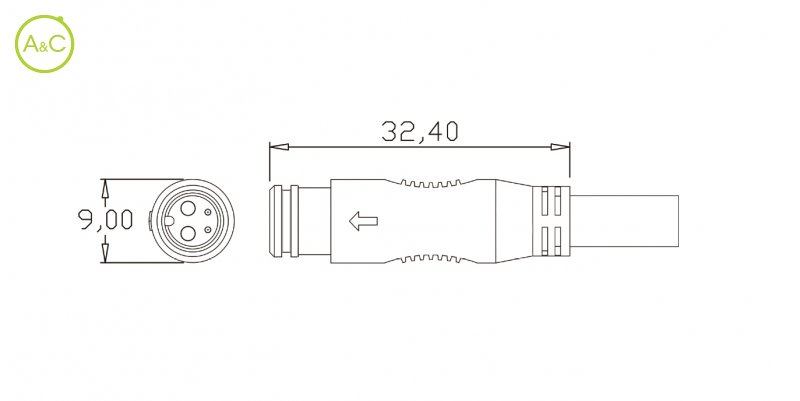

Connector Diameter 9 mm 9 mm
Wire Section 2 x 1,0 + 2 x 0,14 mm² 2 x 1,0 + 2 x 0,14 mm²
Cable Length 1000 mm 1000 mm
Protection Degree IPX7 IPX7
Mating Cycles 200 times 200 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact Copper Alloy Copper Alloy
Cable Diameter 5.5 mm 5.5 mm
Insulation Wire FEP FEP
Remark Other cable length/type on request Other cable length/type on request
Rated Current 10 / 2 A 10 / 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel
Fitting Length 61 mm 61 mm
Material Jacket PVC TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
