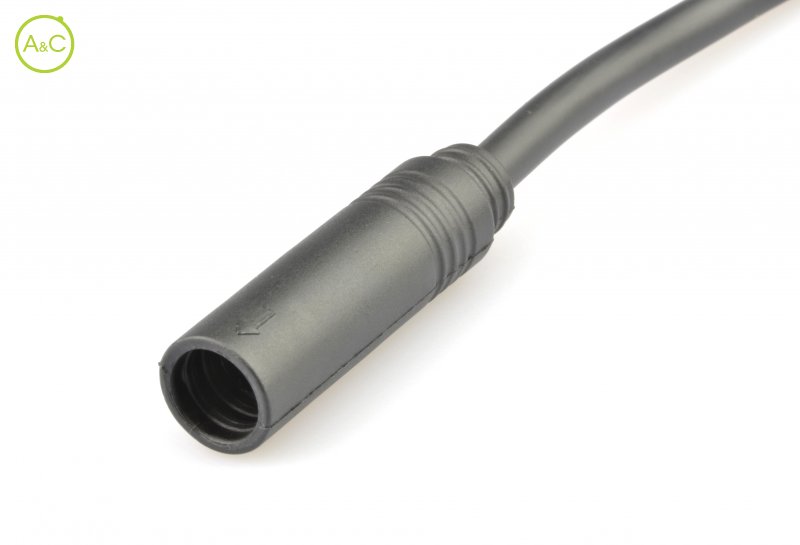

Female cable connector

Download Datenblatt Download Datei

Number Of Poles

  • 6 (3+3)
  • 9 (3+6)
Article Number Z610AM P 00 AC 1000 Z610AM P 00 AD 1000
Color Black Black
Connector Diameter 13 mm 13 mm
Wire Section 3 x 1,2 + 3 x 0,2 mm² 3 x 1,5 + 3 x 0,2 mm²
Cable Length 1000 mm 1000 mm
Protection Degree IP66 IP66
Mating Cycles 200 times 200 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact Copper Alloy Copper Alloy
Cable Diameter 5.8 mm 5.8 mm
Insulation Wire Teflon Teflon
Remark Other cable length/type on request Other cable length/type on request
Rated Current 15 / 2 A 15 / 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel
Fitting Length 75 mm 75 mm
Material Jacket PVC PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
