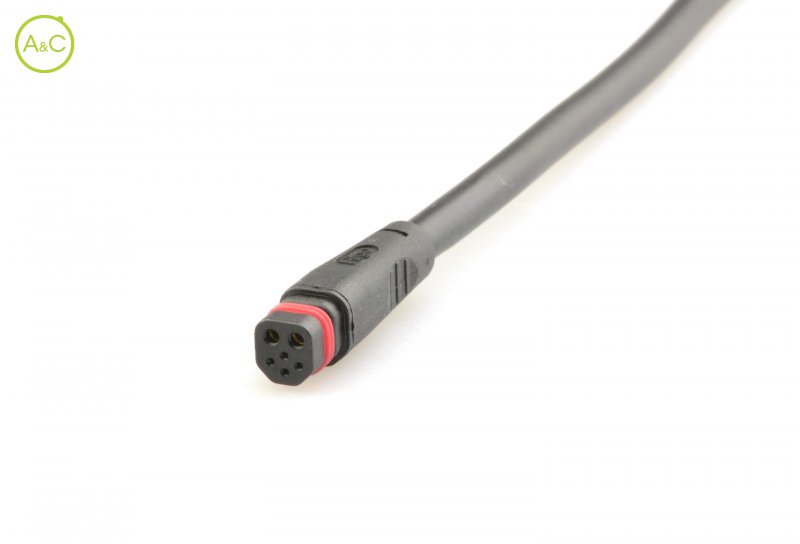

Female cable connector

Number Of Poles

  • 6 (2+4)
Article Number Z610CM P 00 DZ 0000
Color Black

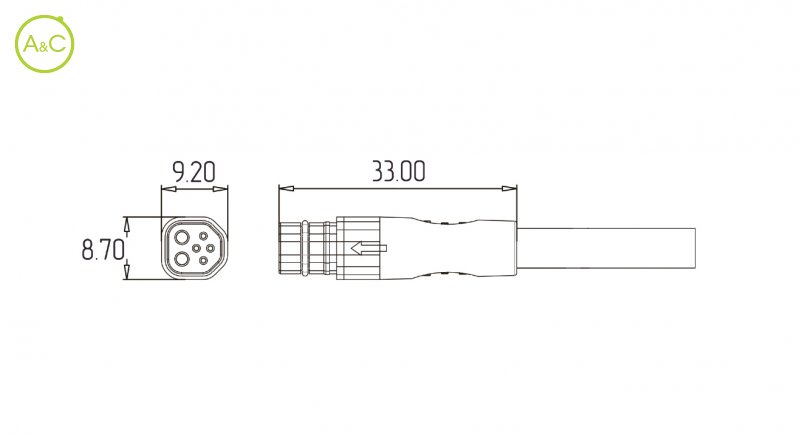

Connector Diameter 8,70 x 9,20 mm
Wire Section 2 x 1,5 + 4 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5.5 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 15 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 59 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
