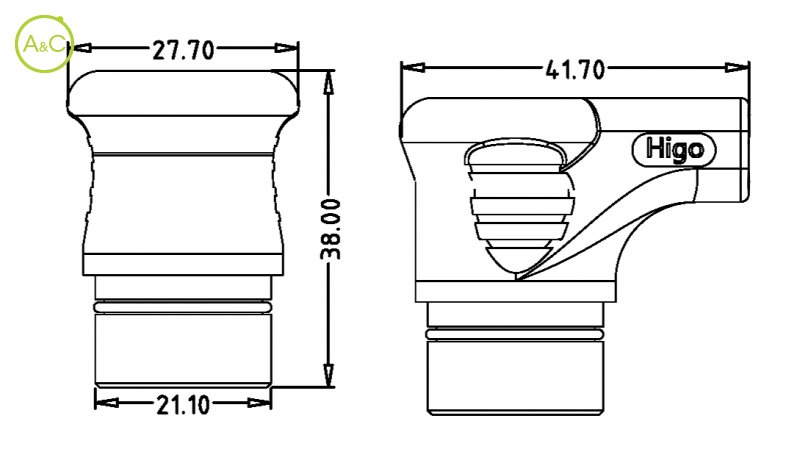

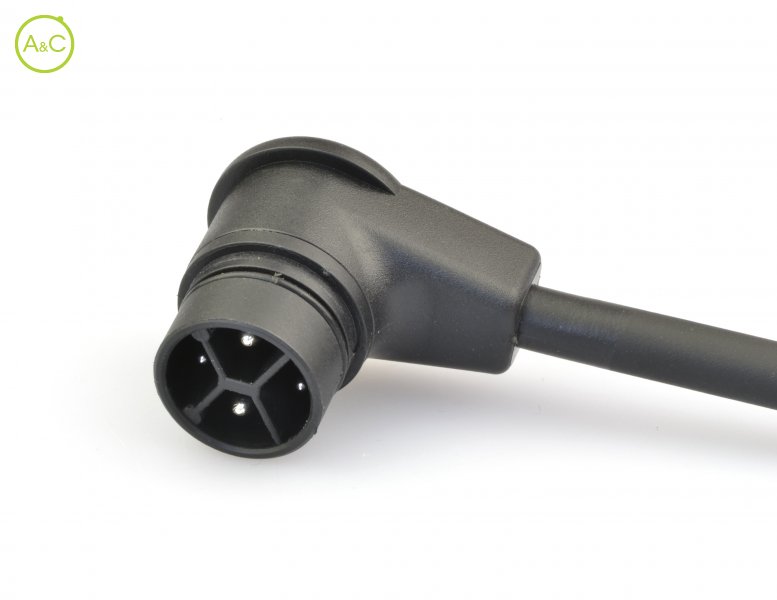

Battery male angled plug connector 48V code, no locking push-on

  • Only for use in 48V applications
Download Datenblatt Download Datenblatt

Number Of Poles

  • 6 (2+4)
Article Number Z624BG A 00 B7 1000
Color Black
Connector Diameter 28 mm
Wire Section 2 x 2,0 + 4 x 0,34 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 45 / 5 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver over Nickel
Material Jacket TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
