Receptacle AWG#28 Green

  • ZR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
Article Number 02ZR-8M-P
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

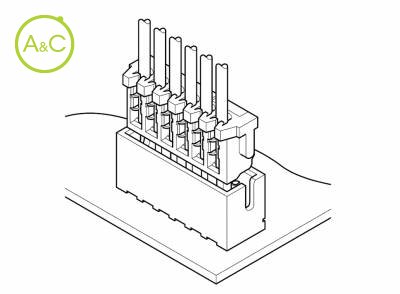

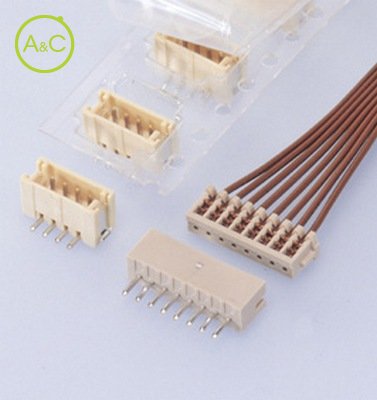

The twin U-slots (IDC slots), the 3-point insulation grip, and the distortion resistant diSConnectable construction ensure a reliable connection even during severe environmental conditions. Compact Only 5.5mm (.217") high and 3.5mm (.138") thick. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connecton. 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a grip on terminated wires and protection of the insulation displacement connection from possible damage. Distortion resistant construction The header is fully shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or otherwise mismating the connectors. Compatible with the ZH crimp style connector The same shrouded header can be used for either the ZR IDC type connector or the ZH crimp style connector. This allows both types of connector to be used interchangeably without replacing the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9351092 RoHS Compliant
