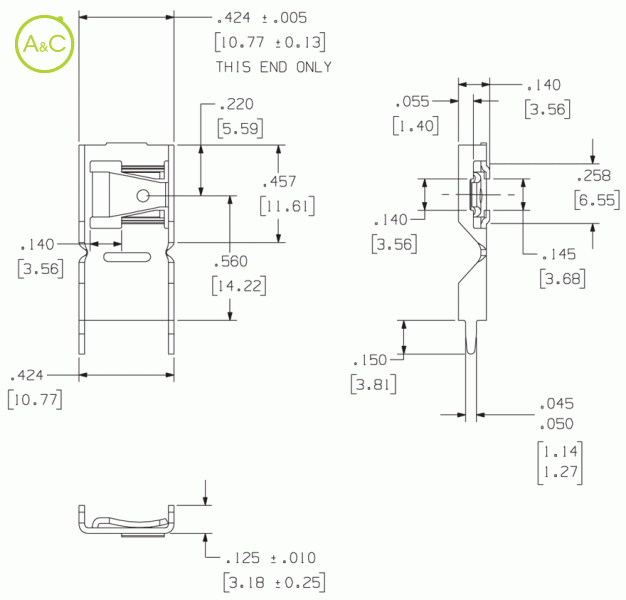

0.250” (6.35mm) Tab Receptacles

  • Mating type Horizontal
  • General
Article Number 6120
Packaging Reeled
Mating Terminal Size 0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass Male and Relays Dual/Multiple Matings
Material Thickness / Type 0.025" (0.64mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 25 Amperes
Applicator System Model 9700, 9700 XY Bending Tool: ZPT-1120BT
Mating Type Horizontal
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.052" ±0.003" (1.32mm ±0.076mm) on 0.400" ±0.005" (10.16mm ±0.127mm) centers
Resistance Rating 20mOhm Max
Mating Entry Horizontal
Temperature Rating -65° to 85°C
Pieces Per Reel (reeled Part No.) 3000
Product sheet Download product sheet
Characteristics differ between variants of a connector
