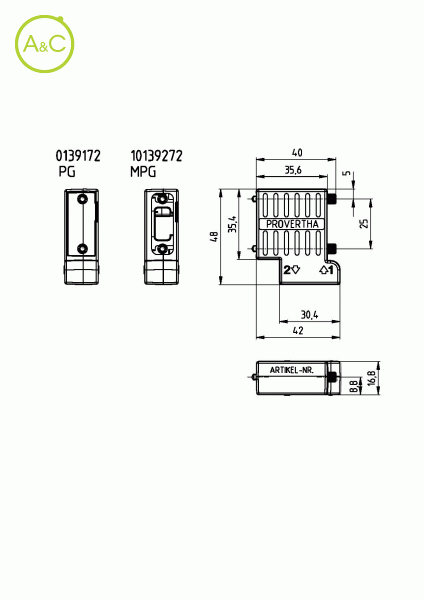

Die cast bus hood with 2 cable outputs

  • Compact
Download Datenblatt

Number Of Poles

  • 9
Article Number 101 39 172 101 39 272
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Thread UNC 4-40 UNC 4-40
Material Zn alloy Zn alloy
Extra Information New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time
Number Of D-subs 1 2
Locking Style knurled screw knurled screw
Cable Exit Angled: 2x75° ( parallel) Angled: 2x75° ( parallel)
Material/surface Locking Screws Diecast St tin plated St tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
55 20 Z4T
Socket head cap screw ISO4762 fitting for diecast hoods
55 20 Z3T
Socket head cap screw ISO4762 fitting for diecast hoods
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
