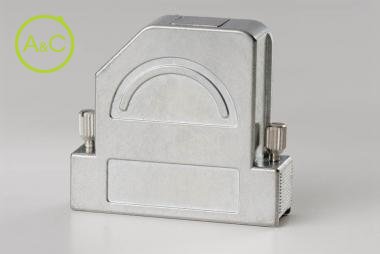

Quick mount Die cast hoods with knurled screw locking cable output 180° and 135°

  • Allen screw
  • Cable clamp internal
Download Datenblatt

Number Of Poles

  • 25
  • 37
  • 50
Article Number 117252DC20001 117253DC20001
Number Of Contacts 25 25
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Thread UNC 4-40 M3
Material zn alloy zn alloy
Locking Style knurled screw knurled screw
Cable Exit Straigt 180° Angled: 1x 180° Straigt 180° Angled: 1x 180°
Cable Fixing Cable clamp intern (al) Cable clamp intern (al)
Cable Outputs 2 2
Cable Diameter Internal Cable Clamp 4-12 4-12
Material Knurled Screws, Cover Screws And Cable Clamp Screws ST tin plated ST tin plated
Compact Thickness For 9-25 Poles For Installation In Sub-devices With 3 Te 15 15
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5850GDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850KDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850LDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
