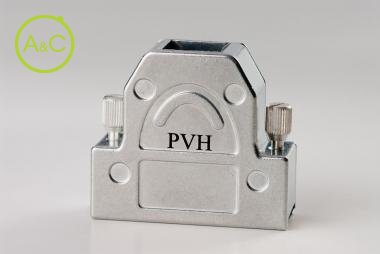

Diecast hoods with screw locking

  • Hood set packed in bag
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number 17 09 DC 25 001
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Thread UNC 4-40
Remark Crimping flange needs te be ordered seperately
Material Zn alloy
Extra Information Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style knurled screw
Cable Exit Straight 180° Angled 25-50p: 2x30°
Cable Fixing clamp intern (al)
Cable Diameter Internal Cable Clamp 4-10
Material/surface Locking Screws Diecast St tin plated
Material/surface Cover Screws ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
55 24 MT
Thumb screw tinnen with slote fitting for diecast hoods
55 24 M3T
Thumb screw tinnen with slote fitting for diecast hoods
55 20 Z4T
Socket head cap screw ISO4762 fitting for diecast hoods
55 20 Z3T
Socket head cap screw ISO4762 fitting for diecast hoods
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
KT 07 GB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5850GDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850KDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850LDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
