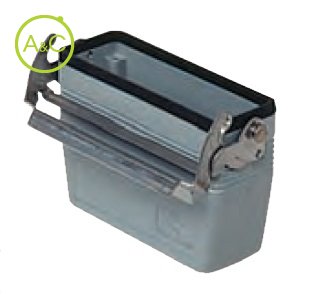

Hoods top entry, high construction, without adaptor

  • With gasket and 1 lever in stainless steel
  • Aluminium PG entry
Download Datenblatt

Entry

  • 1xPG21
  • 1xPG29
Article Number CVFV 06 LG21
Protection Degree IP67
Material Housing Aluminium
Height 77 mm
Length 74
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 65 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CYG 06H06
1 branch-off T-Box coupling
CYG 06H06D
1 branch-off T-Box coupling
CYG 06H10
1 branch-off T-Box coupling to be fitted on DIN rails
CYG 06H10D
1 branch-off T-Box coupling
CYG 06H0610
2 branch-off T-Box coupling
CYG 06H1006
2 branch-off T-Box coupling
CYG 06H0606
2 branch-off T-Box coupling
CYG 06H1010
2 branch-off T-Box coupling
