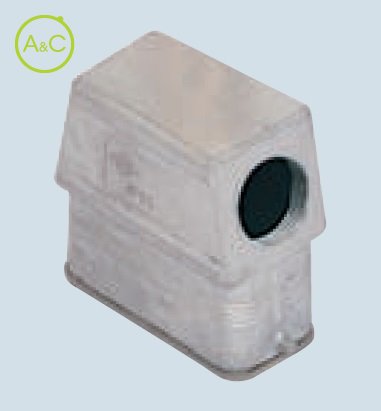

Hoods for electromagnetic compatibility with pegs

  • Side entry, without adaptor
  • Aluminium, 1xPG21
Download Datenblatt
  • General
Article Number CZFOS 15 L21*
Protection Degree IP66
Material Housing Aluminium
Height 64.5 mm
Remark Enclosure without adaptor, threaded on the enclosure body, to be used with a complete cable gland
Length 63
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 15P+PE; CSAH 10P+PE; CDA 10P+PE; CDC 10P+PE; MIXO 1 module
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 36 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
