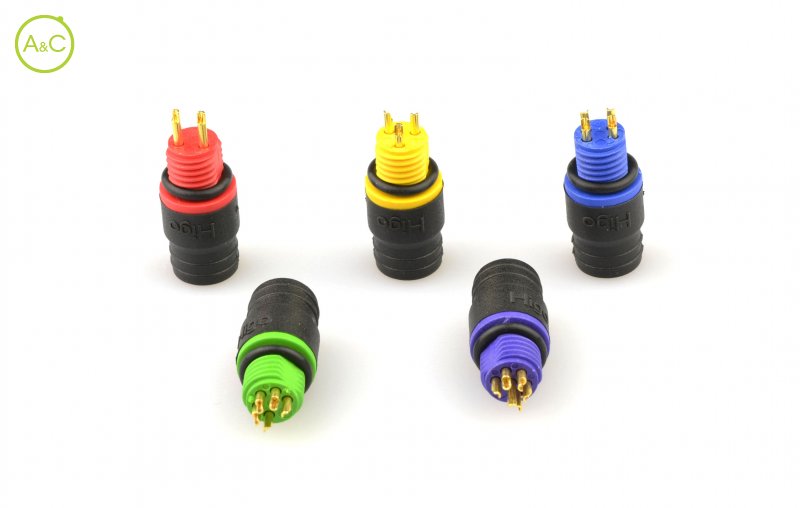

Mini B Female panel mount connector

  • Solder cup contacts
Download Datenblatt Download Datei

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number Z209BM C 02 00 0000
Color Red
Connector Diameter 9 mm
Wire Section 0,14 /0,2 mm²
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 42 mm
Contact Type Solder cup contacts
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
