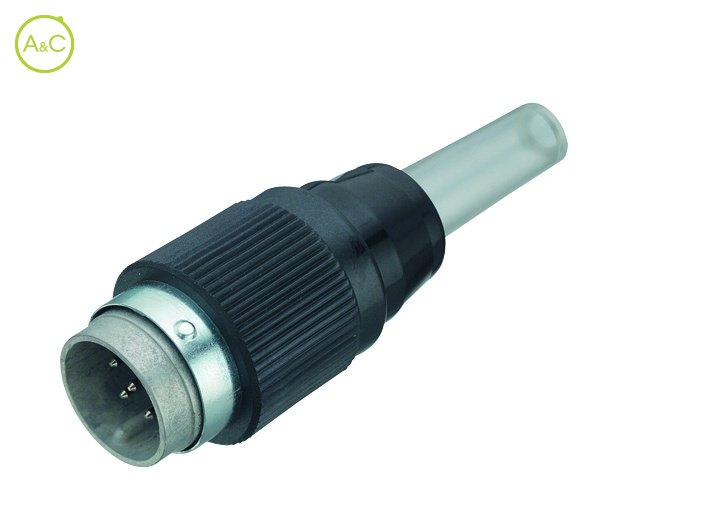

Male cable connector

Number Of Poles

  • 3
  • 5
  • 7
  • 12
Article Number 09 0055 00 03
Connector Diameter 29 mm
Number Of Contacts 3 contacts
Connector Locking System Bayonet
Termination Solder
Wire Section 2.5 mm²
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 10 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Ag (Silver)
Material Of Insert PET (UL 94 V-0)
Material Of Housing GD-Al (anodized)
Cable Outlet 5-8 mm
Product sheet Download product sheet
Characteristics differ between variants of a connector
