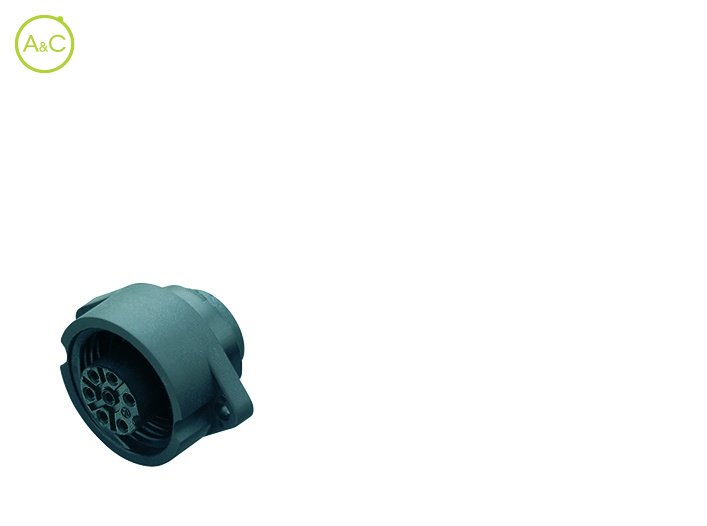

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 6+PE
| Article Number | 09 0204 00 07 |

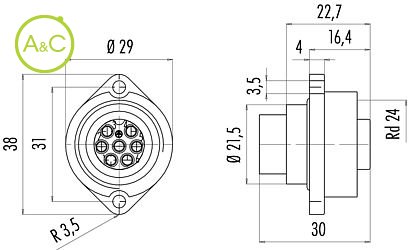

| Connector Diameter | 21.5 mm |
| Number Of Contacts | 6+PE contacts |
| Connector Locking System | Screw (RD24) |
| Termination | Crimp |
| Wire Section | 0,14 - 1,5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 4000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 10 A |
| Material Of Insert | PBT |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
