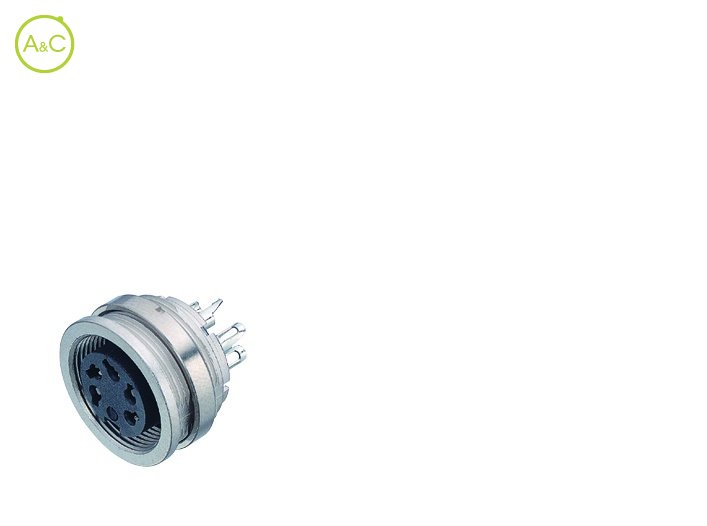

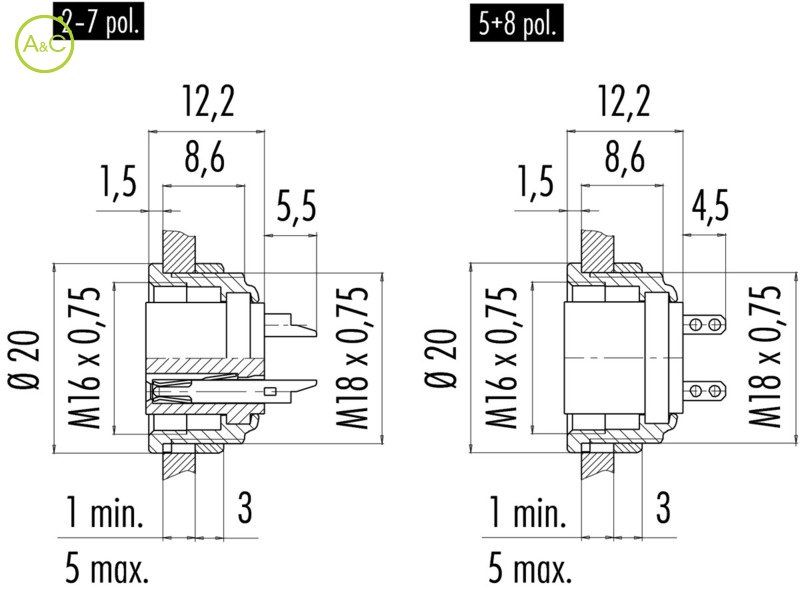

Female panel mount connector

  • Solder

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 5 (Stereo)
  • 6 DIN
  • 7
  • 7 DIN
  • 8 DIN
  • 12
  • 14
  • 16
  • 19
  • 24
Article Number 09 0304 00 02 09 0304 09 02
Connector Diameter 20 mm 20 mm
Number Of Contacts 2 contacts 2 contacts
Connector Locking System Screw (M16) Screw (M16)
Termination Solder Solder
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP40 IP40
Mating Cycles >500 times >500 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 (32) 250 (32)
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 1 (2)* 1 (2)*
Overvoltage Categorie I (II)* I (II)*
Material Group III III
Rated Current (40°) 7 A 7 A
Max. Contact Resistance 5 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Material Of Insert PBT (UL 94 V-0) PBT (UL 94 V-0)
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Remark** *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
