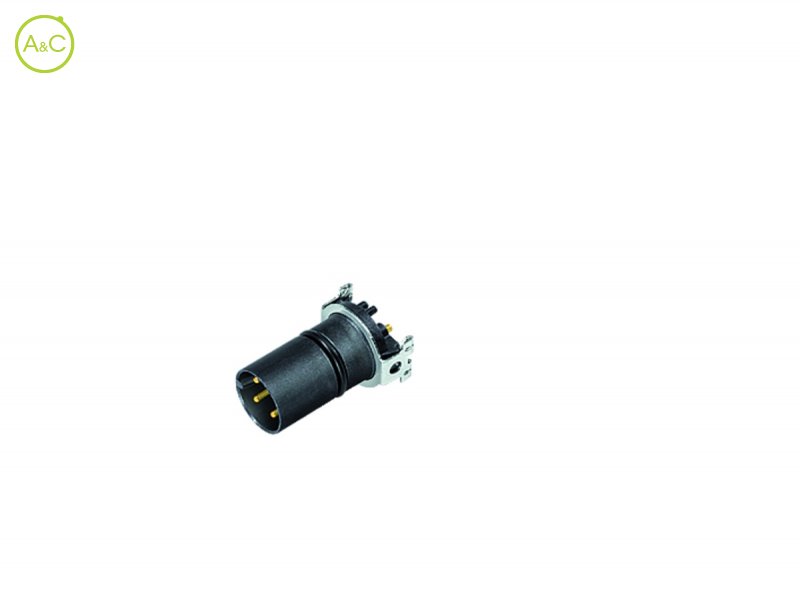

Male panel mount connector

  • SMT

Number Of Poles

  • 4
  • 5
  • 8
Article Number 09 0431 600 04

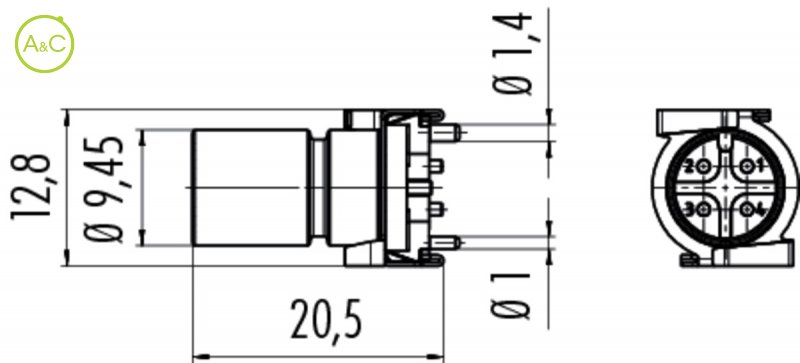

Connector Diameter 9.45 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert LCP
Product sheet Download product sheet
Characteristics differ between variants of a connector
