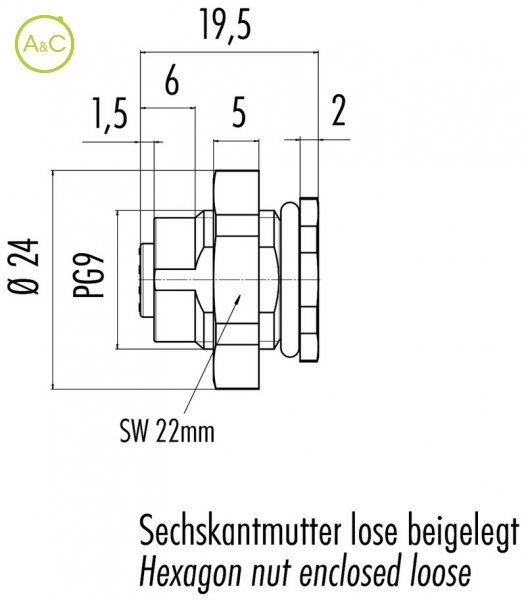

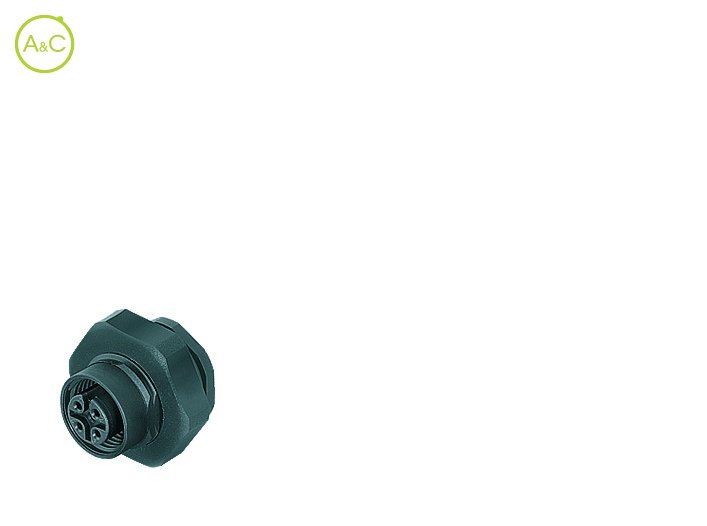

Female panel mount connector

  • Front fastened, solder

Number Of Poles

  • 4
  • 5
  • 8
Article Number 86 4832 3002 00004
Old Article Number 09 0432 488 04
Connector Diameter 24 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Fixing Thread PG 9
Product sheet Download product sheet
Characteristics differ between variants of a connector
