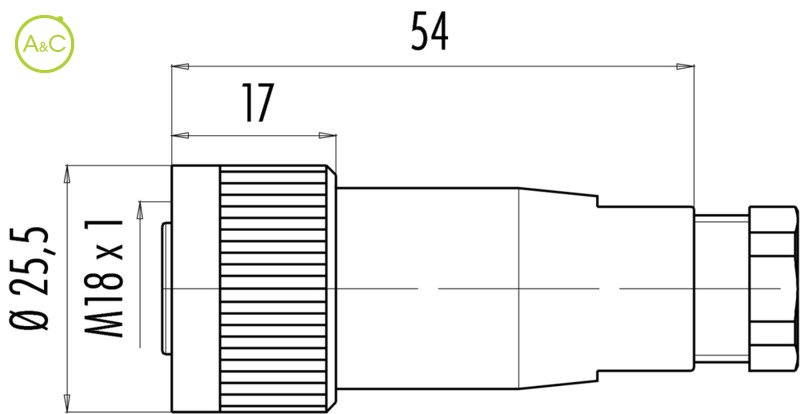

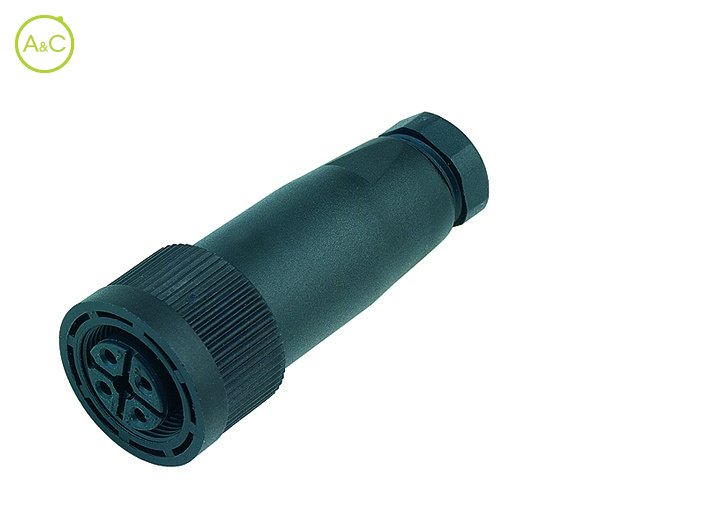

Female cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4
| Article Number | 09 0440 10 04 | 09 0440 010 04 | 99 0440 16 04 | 99 0440 016 04 |
| Connector Diameter | 25.5 mm | 25.5 mm | 25.5 mm | 25.5 mm |
| Number Of Contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M18) | Screw (M18) | Screw (M18) | Screw (M18) |
| Termination | Screw | Screw | Screw | Screw |
| Wire Section | 1.5 mm² | 1.5 mm² | 1.5 mm² | 1.5 mm² |
| Protection Degree | IP67 | IP67 | IP67 | IP67 |
| Mating Cycles | >50 times | >50 times | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C | -25 °C |
| Rated Voltage | 250 | 250 | 250 | 250 |
| Rated Impuls Voltage | 4000 V | 4000 V | 4000 V | 4000 V |
| Pollution Degree | 3 | 3 | 3 | 3 |
| Overvoltage Categorie | III | III | III | III |
| Material Group | III | III | III | III |
| Rated Current (40°) | 16 A | cUR 5 A | 16 A | cUR 5 A |
| Max. Contact Resistance | 8 mΩ | 8 mΩ | 8 mΩ | 8 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) | CuSnZn (Optalloy) | CuSnZn (Optalloy) | CuSnZn (Optalloy) |
| Material Of Insert | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) |
| Material Of Housing | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) | PA (UL 94 HB) / PBT (UL 94-0) |
| Product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
