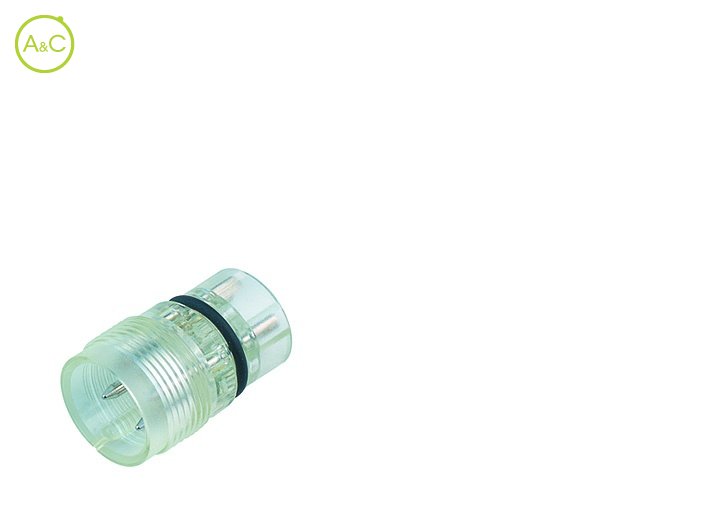

Male receptacle

  • Solder, transparent

Number Of Poles

  • 4
Article Number 09 0441 00 04 09 0441 50 04

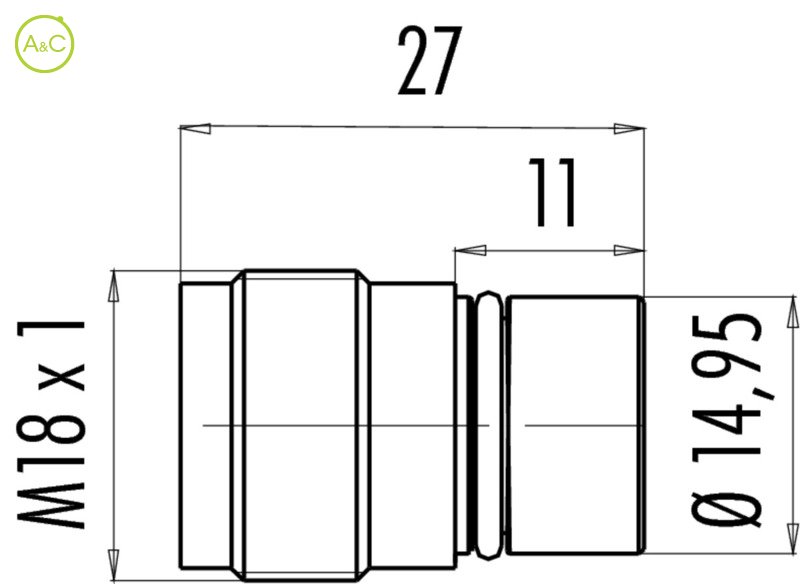

Connector Diameter 14.95 mm 14.95 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M18) Screw (M18)
Termination Solder Solder
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 4000 V 4000 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group II II
Rated Current (40°) 16 A 16 A
Max. Contact Resistance 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA PA
Material Of Housing PA PA
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
