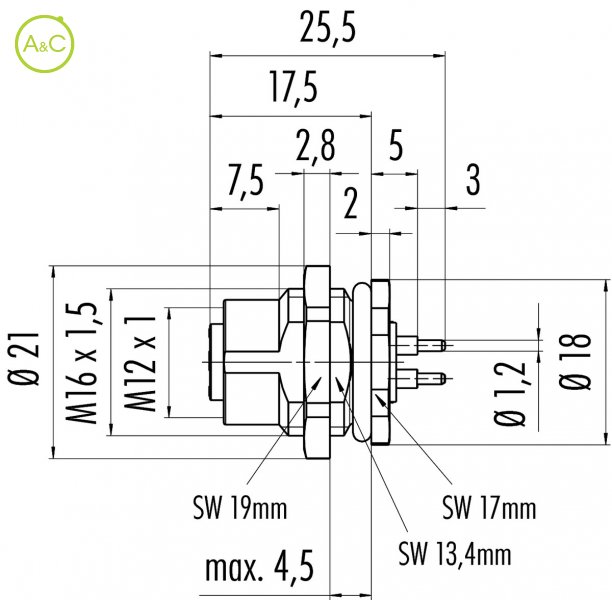

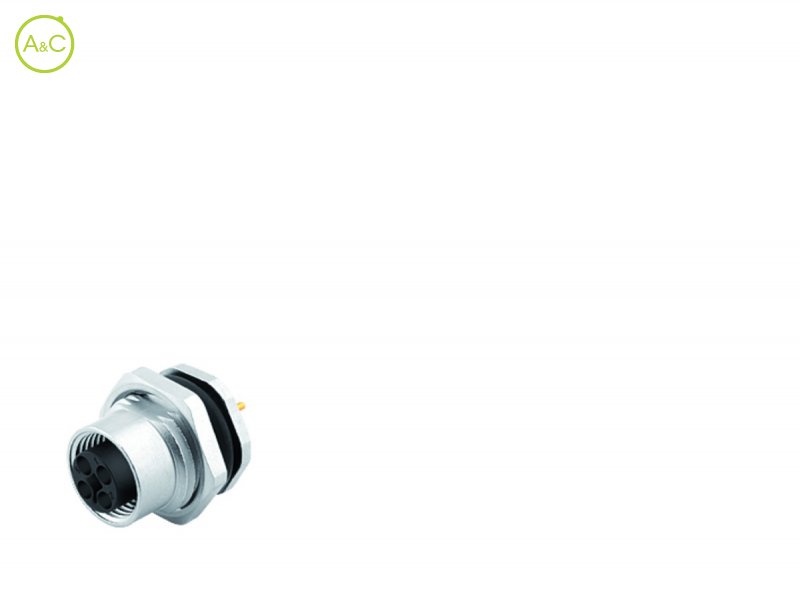

Female panel mount connector

  • front fastened, dip solder

Number Of Poles

  • 4
Article Number 09 0632 90 04
Connector Diameter 21 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-T)
Termination dip solder
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 63
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass nickel plated / zinc diecasting nickel plated
Product sheet Download product sheet
Characteristics differ between variants of a connector
