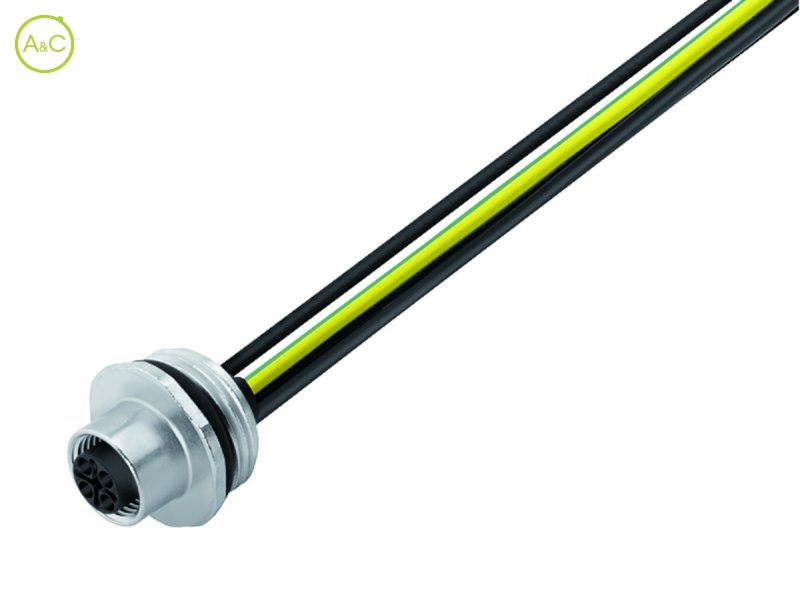

Female panel mount connector

  • with single wires, M20 x 1,5

Number Of Poles

  • 3+PE
Article Number 09 0692 642 04
Connector Diameter 23 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw(M12-S)
Termination Single wires
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 630
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA/ zinc diecasting
Fixing Thread M20 x 1,5
Product sheet Download product sheet
Characteristics differ between variants of a connector
