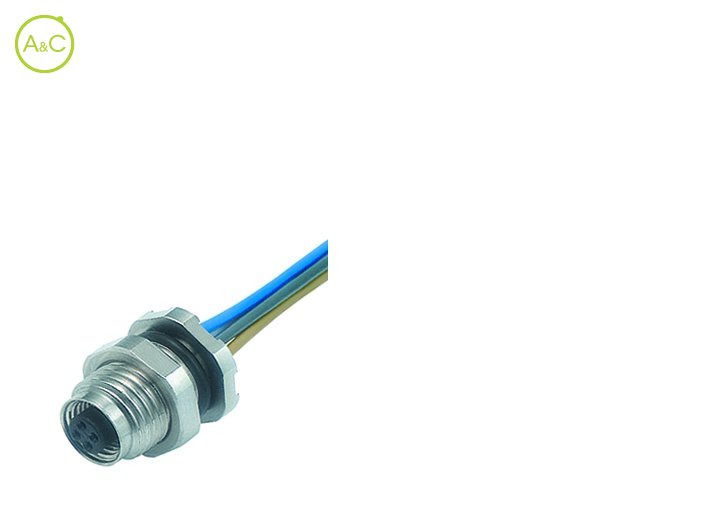

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 4
| Article Number | 09 3106 86 03 |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw (M5) |
| Termination | Assembled with single wires |
| Wire Section | 0.14 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | I |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | CuZn (Brass nickel plated) |
| Cable Diameter | 3,1 mm |
| Cable Jacket Material | PUR |
| Insulation Wire | PVC |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
