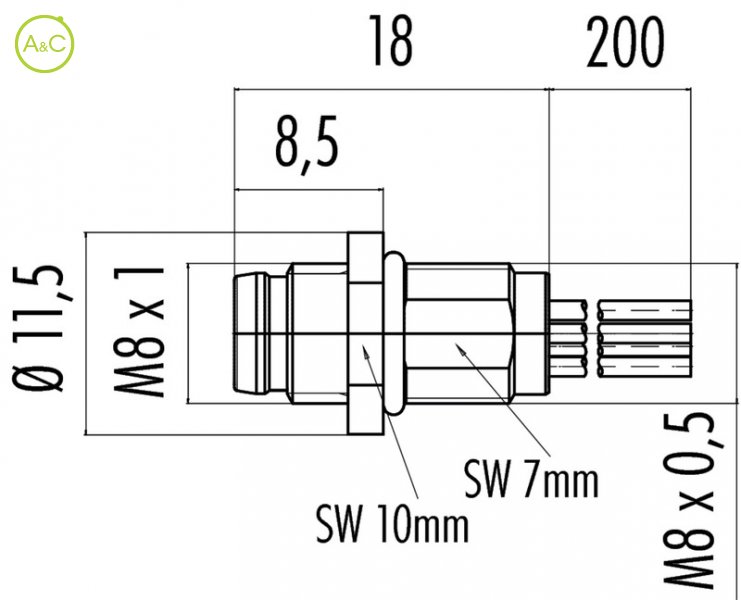

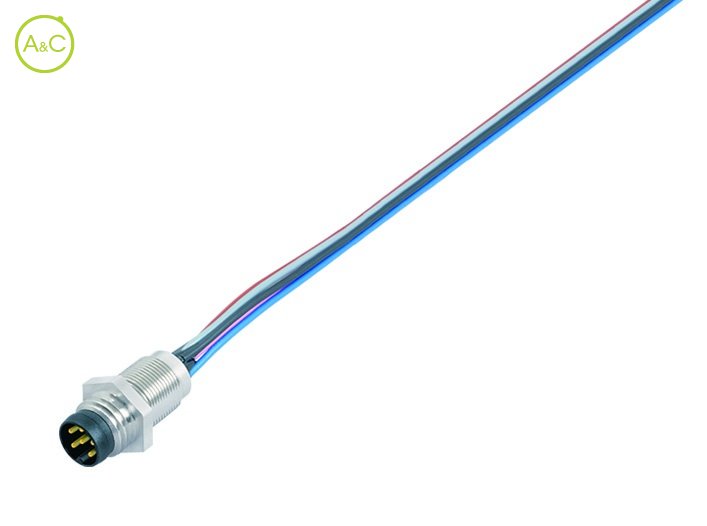

Male panel mount connector

  • With single wires
  • UL-approval

Number Of Poles

  • 3
  • 4
  • 6
  • 8
Article Number 09 3403 00 03
Connector Diameter 11.5 mm
Number Of Contacts 3 contacts
Connector Locking System Screw, snap-in
Termination Single wires 0,25 mm
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Characteristics differ between variants of a connector
