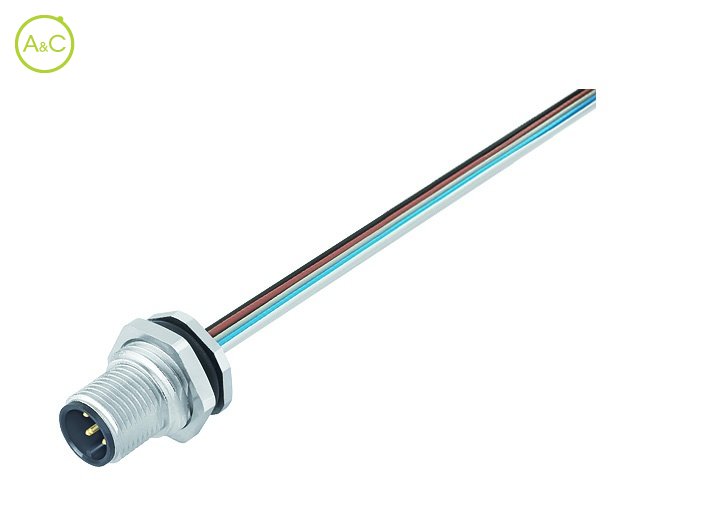

Male panel mount connector

  • With single wires, front fastened, 0,25mm²

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 76 0531 1011 00004 0200 76 0631 1011 00004 0200
Old Article Number 09 3431 116 04 09 3431 120 04

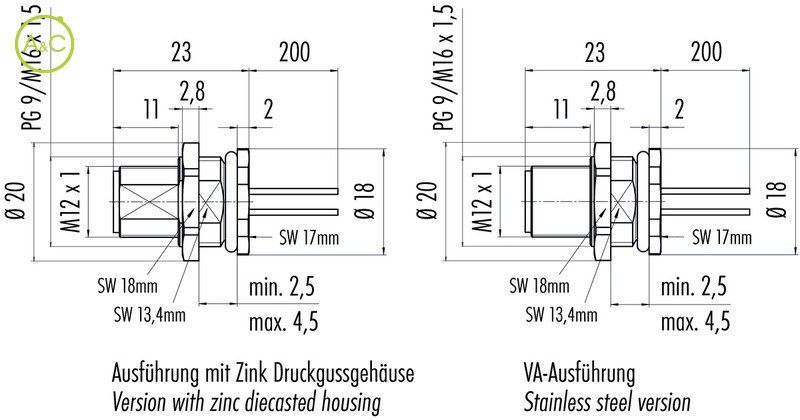

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Single wires Single wires
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
