Adapter

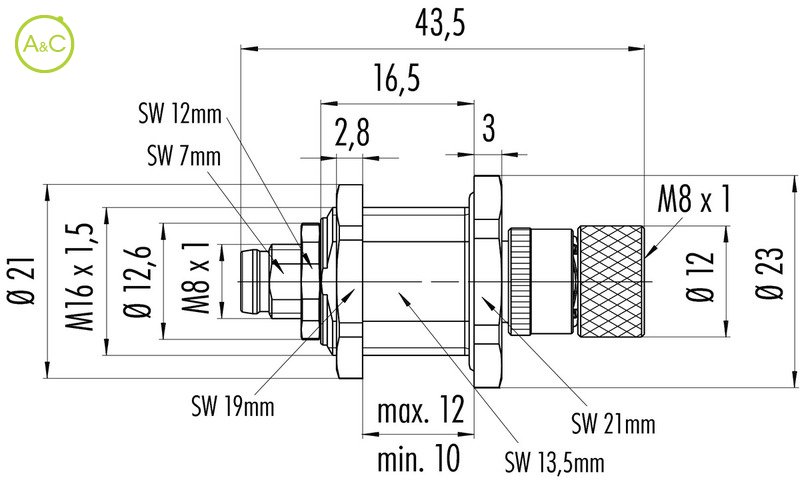

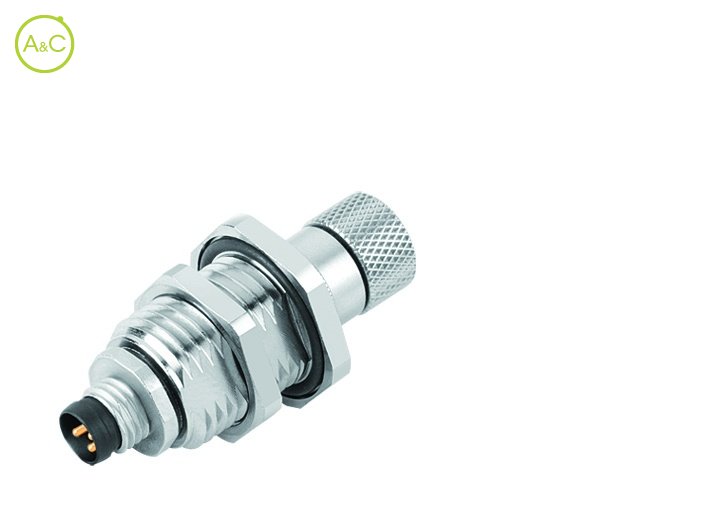

  • Lead-through for control cabinet, shielded Male connector M8 - female connector M8

Number Of Poles

  • 3
  • 4
Article Number 09 5250 00 03
Connector Diameter 21 - 23 mm
Number Of Contacts 3 contacts
Connector Locking System Screw
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing Zinc diecasting nickel plated/brass nickel plated
Product sheet Download product sheet
Characteristics differ between variants of a connector
