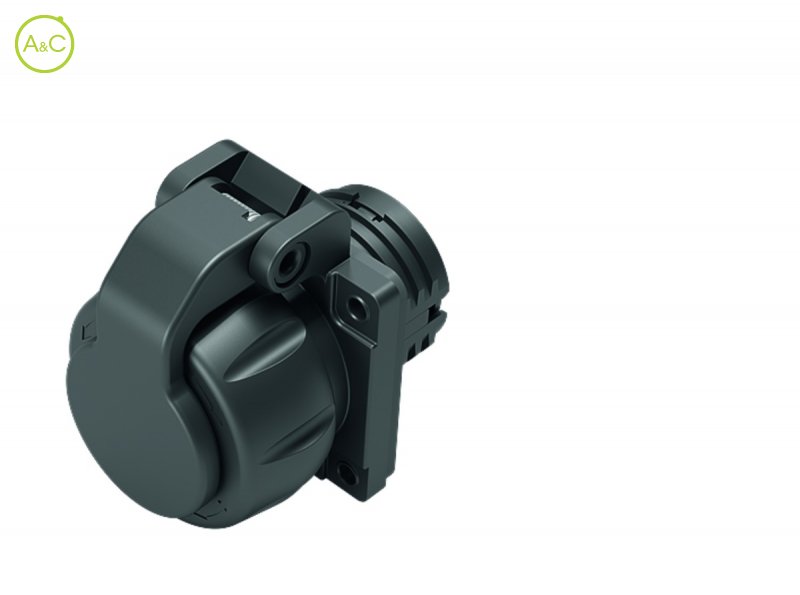

Female panel mount connector

  • With bayonet locking, Hinged cover

Number Of Poles

  • 4+3+PE
  • 4+PE
  • 12
Article Number 09 6492 200 05
Number Of Contacts 4+PE contacts
Connector Locking System Bayonet
Termination Crimp
Wire Section 2,50-6,00 mm²
Protection Degree IP68/IP69K
Mating Cycles >1000 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 600
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group I
Rated Current (40°) 32 A
Max. Contact Resistance >10 mΩ
Material Of Contact depending on crimp contact
Plating depending on crimp contact
Material Of Insert PA
Material Of Housing PA
Wire Gauge 14-10 AWG
Product sheet Download product sheet
Characteristics differ between variants of a connector
