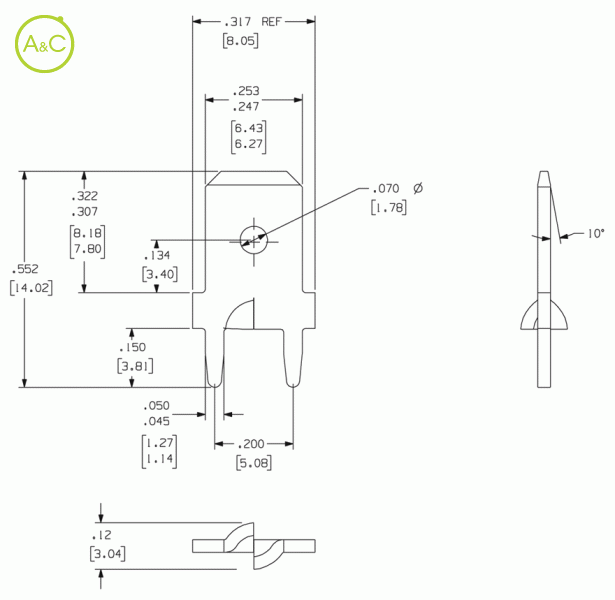

0.250" (6.35mm) Tabs / Quick Disconnect Terminals

  • Straight, 14.02 mm high

Packaging

  • Loose
  • Reeled
Article Number 1021 1198
Extra Description Straight, 14.02 mm high Straight, 14.02 mm high
Dim A 0.134" (3.40mm) 0.160" (4.06mm)
Material Thickness / Type 0.032" (0.81mm) C26000 Brass 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating Ul 20 Amperes 20 Amperes
Current Rating C-ul 20 Amperes 20 Amperes
Ul File Number E146208 E146208
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Outward or Inward Splay Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm) 0.058" ±0.003" (1.47mm ±0.076mm)
Feature 'b' 0.070" (1.78mm) HOLE 0.070" (1.78mm) DIMPLE
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
