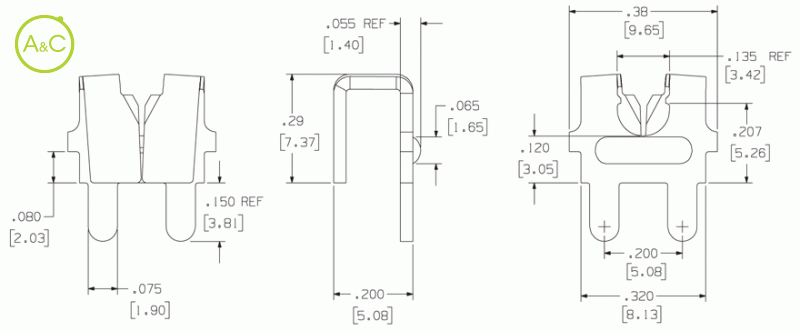

IDC (Insulation Displacement Connector) For #16-14 AWG Wire

Packaging

  • Loose
  • Reeled
Article Number 1174
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul AWG 16 stranded 17.0 amperes AWG 16 solid 17.0 amperes AWG 14 stranded 22.0 amperes AWG 14 solid 22.0 amperes
Current Rating C-ul AWG 16 stranded 15.0 amperes AWG 16 solid 17.0 amperes AWG 14 stranded 19.0 amperes AWG 14 solid 22.0 amperes
Ul File Number E361770
Applicator System Loose: WTW-1174 Reeled: Model 9700, 9700 XY Wire Termination Tool: WTPPL-1174-1
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.080" ±0.003" (2.03mm ±0.076mm) on 0.200" (5.08mm) centers
Wire Gauge Range #16-14 AWG
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Product sheet Download product sheet
Characteristics differ between variants of a connector
