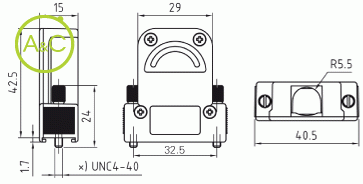

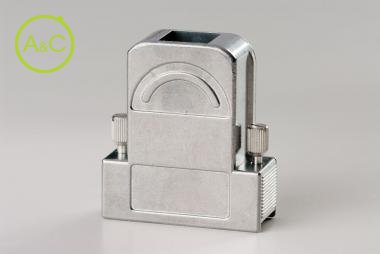

Compact DVI 360° EMI/RFI full metal hood with knurled locking screws

  • Hoods as seperate parts in plastic bag
  • Crimp flange/External cable clamp Standard
Download product sheet

Number Of Poles

  • 15
Article Number 119150DC25000 119151DC25000 119152DC25000 119153DC25000 119156DC25000 119157DC25000 119158DC25000 119159DC25000
Number Of Contacts 15 15 15 15 15 15 15 15
Upper Temperature +85 °C +85 °C +85 °C +85 °C +85 °C +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Thread UNC-4-40 M3 UNC-4-40 M3 UNC-4-40 M3 UNC-4-40 M3
Material zn alloy zn alloy zn alloy zn alloy zn alloy zn alloy zn alloy zn alloy
Locking Style Knurled screw Knurled screw Knurled screw Knurled screw Knurled screw Knurled screw Knurled screw Knurled screw
Cable Exit Straight 180° Straight 180° Straight 180° Straight 180° Straight 180° Straight 180° Straight 180° Straight 180°
Cable Fixing Cable clamp External (al) Crimp flange Cable clamp External (al) Crimp flange Cable clamp External (al) Crimp flange Cable clamp External (al) Crimp flange Cable clamp internal (al) Cable clamp External (al) Crimp flange Cable clamp internal (al) Cable clamp External (al) Crimp flange
Cable Diameter External Cable Clamp 4-14 4-14 4-14 4-14 4-14 4-14 4-14 4-14
Cable Diameter Crimping Flange 2,7-8,7 2,7-8,7 2,7-8,7 2,7-8,7 2,7-8,7 2,7-8,7 2,7-8,7 2,7-8,7
Material/surface Locking Screws Diecast ST tin plated ST tin plated ST tin plated ST tin plated ST tin plated ST tin plated ST tin plated ST tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated ST Zinc plated ST Zinc plated ST Zinc plated ST Zinc plated ST Zinc plated ST Zinc plated
Characteristics differ between variants of a connector
