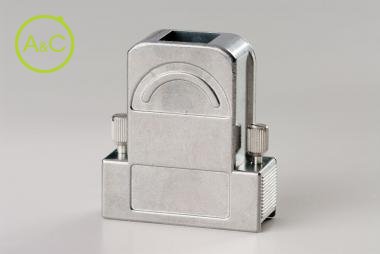

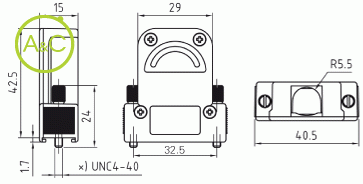

Compact DVI 360° EMI/RFI full metal hood with knurled locking screws

  • Hoods as a set in plastic bag
  • Crimp flange/External cable clamp Standard

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Number Of Poles

  • 15
Article Number 119150DC25001 119151DC25001
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Thread UNC-4-40 M3
Material zn alloy zn alloy
Locking Style Knurled screw Knurled screw
Cable Exit Straight 180° Straight 180°
Cable Fixing Cable clamp External (al) Crimp flange Cable clamp External (al) Crimp flange
Cable Diameter External Cable Clamp 4-14 4-14
Cable Diameter Crimping Flange 2,7-8,7 2,7-8,7
Material/surface Locking Screws Diecast ST tin plated ST tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Characteristics differ between variants of a connector
