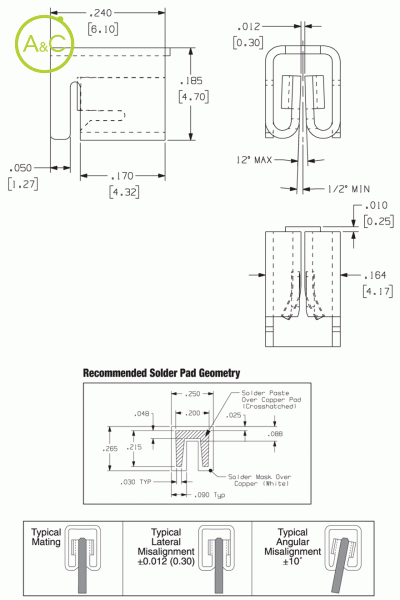

SMT Bottom or Horizontal Entry Universal Tab Receptacles


  • Loose
  • Reeled
  • Small reeled
  • Taped
Article Number 1238
Mating Terminal Size 0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 25 Amperes
Feeder System Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Pieces Per Reel (taped Part No.) /
Pieces Per Reel (small Reel Part No.) /
Product sheet Download product sheet
Characteristics differ between variants of a connector
