SMT Insulation Piercing Connectors
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Packaging
- Loose
- Small reeled
- Taped

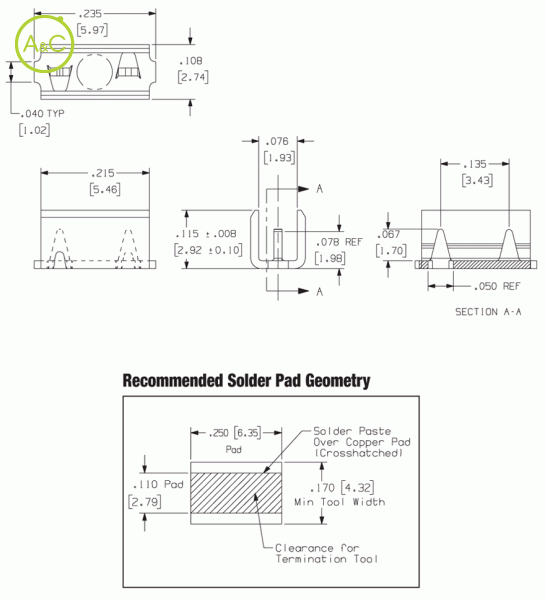

| Article Number | 1286 |
| Extra Description | AWG 16-20 |
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | Pre-finished 100% Matte Tin over Copper. Edges will be bare. |
| Current Rating Ul | 13 amperes |
| Current Rating C-ul | 13 amperes |
| Feeder System | Standard 12mm Tape Feeder for PN 1286T |
| Ul File Number | E361770 |
| Crimping System | Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1286-1 (for low volume and/or field terminations) |
| Wire Sizes + Insulation Outside Diameter | 16 AWG: 0.077" 18 AWG: 0.068"/0.078"/0.080" 20 AWG: 0.068"/0.073"/0.082" |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (taped Part No.) | / |
| Pieces Per Reel (small Reel Part No.) | / |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
