SMT Insulation Piercing Connectors

  • AWG 12-16

Packaging

  • Loose
  • Small reeled
  • Taped

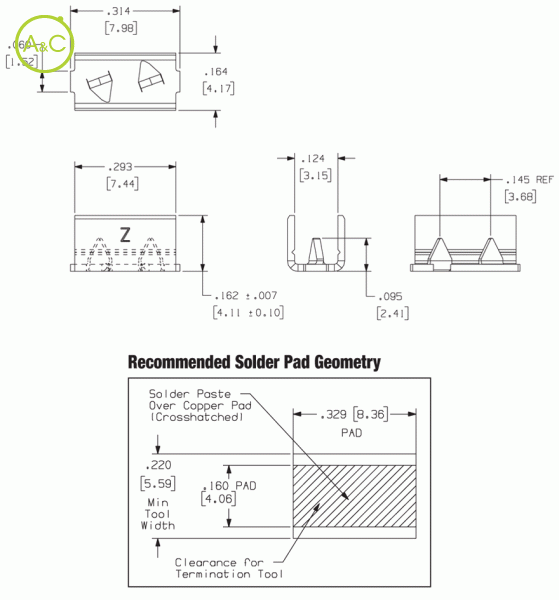

Article Number 1293
Extra Description AWG 12-16
Material Thickness / Type 0.020" (0.51mm) C26000 Brass
Standard Finish Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul 16 amperes
Current Rating C-ul 16 amperes
Feeder System Standard 16mm Tape Feeder for PN 1293T
Ul File Number E361770
Crimping System Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1293-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter 12 AWG: 0.125" 14 AWG: 0.111"/0.130" 16 AWG: 0.124"
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (taped Part No.) /
Pieces Per Reel (small Reel Part No.) /
Product sheet Download product sheet
Characteristics differ between variants of a connector
